Key performance

86 ch
Power
🔧
897 cc
Displacement
⚖️
223 kg
Weight
🏎️
221 km/h
Top speed
💺
825 mm
Seat height
20.0 L
Fuel capacity
💰
7 999 €
New price
Compare the Yamaha TDM 900 with: Choose a motorcycle →

Technical specifications

Engine

Displacement
897 cc
Power
86.0 ch @ 7500 tr/min (63.3 kW)
Torque
89.2 Nm @ 6000 tr/min
Engine type
Bicylindre parallèle, 4 temps
Cooling
liquide
Compression ratio
10.4 : 1
Bore × stroke
92 x 67.5 mm
Valves/cylinder
5
Camshafts
2 ACT
Fuel system
Injection

Chassis

Frame
Double poutre en aluminium
Gearbox
boîte à 6 rapports
Final drive
Chaîne
Front suspension
Fourche téléhydraulique Ø 43 mm , déb : 150 mm
Rear suspension
Mono-amortisseur, déb : 133 mm

Brakes

Front brakes
Freinage 2 disques Ø 298 mm, étrier 2 pistons
Rear brakes
Freinage 1 disque Ø 245 mm, étrier 2 pistons
Front tyre
120/70-18
Front tyre pressure
2.50 bar
Rear tyre
160/60-17
Rear tyre pressure
2.50 bar

Dimensions

Seat height
825.00 mm
Fuel capacity
20.00 L
Weight
223.00 kg
Dry weight
191.00 kg
New price
7 999 €

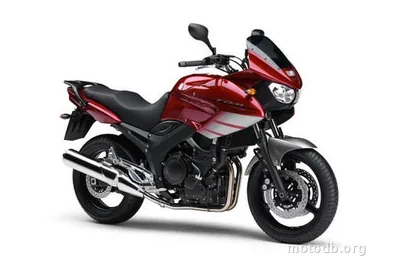

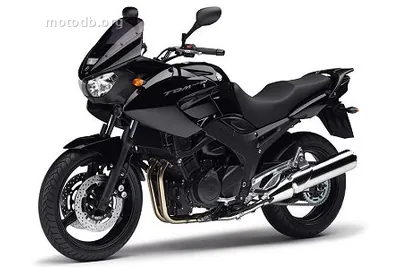

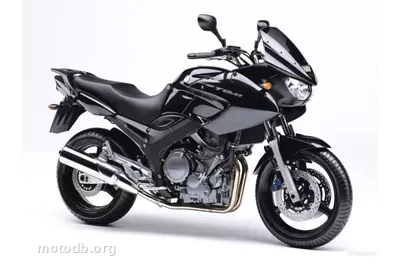

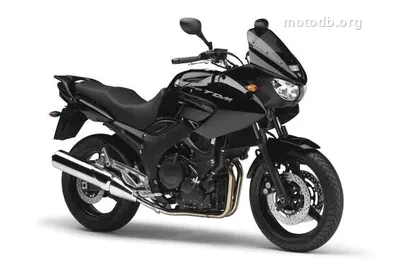

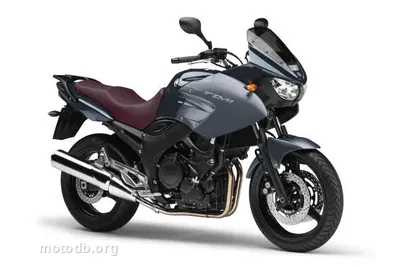

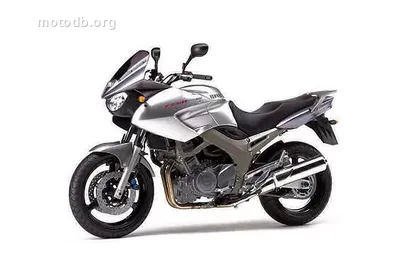

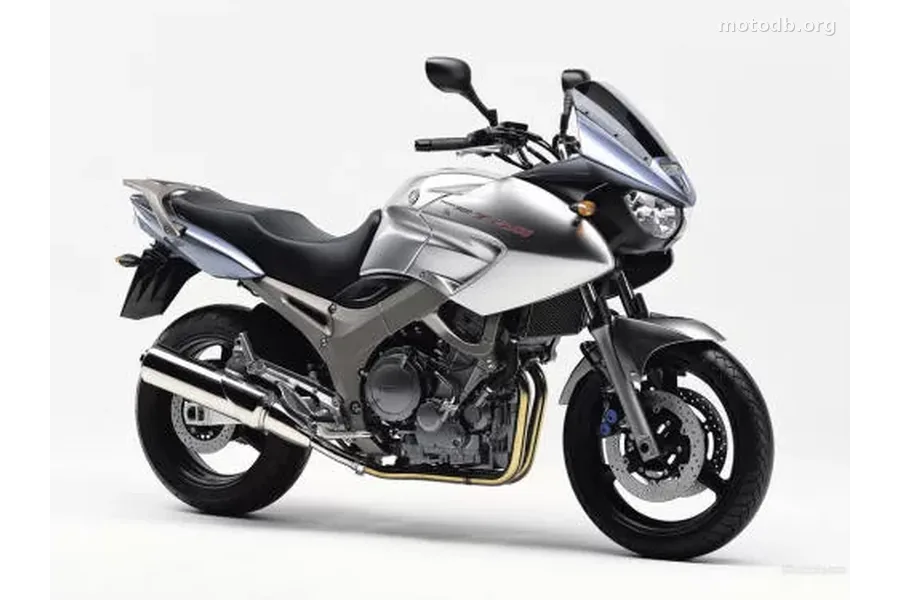

Overview

Even though it is no longer produced, the TDM 900 remains in the manufacturer's catalog, and isn't languishing in stock. 215 units were sold in 1913, 15 more than the famous YZF-R6. An oddity in the motorcycle world, a blend of roadster, trail, and touring machine, this bike patiently awaits the end of stock and, above all, a successor worthy of it. The current version dates from 2010, without changes since the major 850 -> 900 overhaul. From steel on the 850, the twin-spar frame now uses aluminum, the forks increase from 41 to 43 mm, and the tire fitment gains confidence: from 110 to 120 for the front and from 150 to 160 mm for the rear. Like many of the manufacturer's machines, the TDM adopts a braking system closely derived from the R1. The gearbox finally goes to 6 speeds, while gaining in smoothness of operation, and the aesthetics gain in elegance. It’s subtle but certain. The biggest change comes from the engine block. It's still a parallel twin but benefits from injection and its displacement increases by 48 cm3. Torque progresses by more than 1 mkg and power by 9 hp. The engine has more grunt without changing its character. Reps are better, but we would have appreciated more enthusiasm in its revs. Slightly reduced, the general comfort still remains at a good level. It must be said that the bike has become more efficient and more rigorous. You have to make concessions. The TDM spirit remains, versatility being its greatest asset. More punch and more efficiency; what more do you want?

We want ABS! Fine, if you insist. Yamaha has offered it on its TDM since 2005. A system of design analogous to that of the FJR 1300. Count a few hundred euros and 3 kg more to enjoy top-notch safety braking. A GTest version is also available for 1,000 euros more, including a suitcase, suitcase support, bubble, handguards and deflectors.

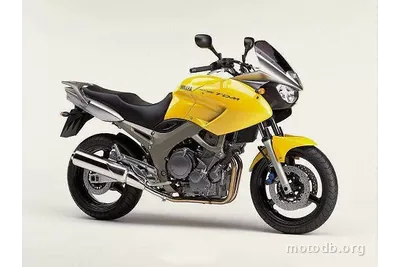

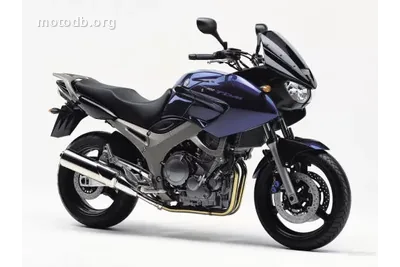

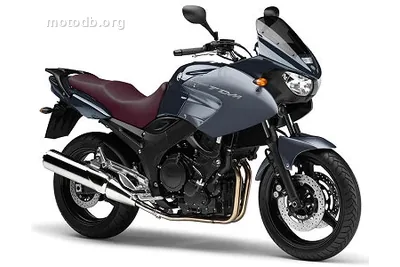

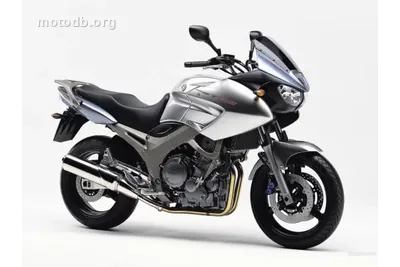

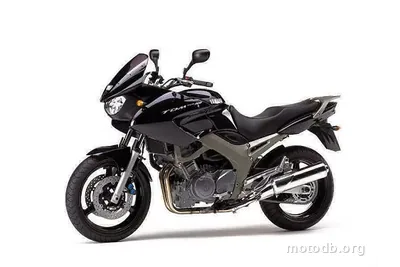

M.B - photos manufacturer

Standard equipment

  • Assistance au freinage : ABS en option

Practical info

  • La moto est accessible aux permis : A

Indicators & positioning

Weight-to-power ratio
0.38 ch/kg
🔄
Torque / weight
0.40 Nm/kg
🔧
Volumetric power
94.5 ch/L
In category Allround · 449-1794cc displacement (1866 motorcycles compared)
Power 85 ch Top 28%
16 ch median 61 ch 139 ch
Weight 223 kg Lighter than 39%
168 kg median 213 kg 261 kg
P/W ratio 0.38 ch/kg Top 35%
0.13 median 0.33 0.54 ch/kg
