Key performance

68 ch
Power
🔧
1202 cc
Displacement
⚖️
268 kg
Weight
🏎️
175 km/h
Top speed
💺
725 mm
Seat height
17.0 L
Fuel capacity
💰
12 650 €
New price
Compare the Harley-Davidson XL Sportster 1200 Custom with: Choose a motorcycle →

Technical specifications

Changements 2013 2019
Power
75.0 ch @ 6000 tr/min (55.2 kW) 68.0 ch @ 6000 tr/min (50.0 kW)
Torque
98.1 Nm @ 3200 tr/min 96.1 Nm @ 3500 tr/min
Front suspension
Fourche téléscopique Ø 39 mm Fourche téléscopique Ø 39 mm, déb : 105 mm
Rear suspension
2 amortisseurs latéraux 2 amortisseurs latéraux, déb : 54 mm
Front brakes
Freinage 1 disque Ø 292 mm, étrier 2 pistons Freinage 1 disque Ø 300 mm, étrier 2 pistons
Rear brakes
Freinage 1 disque Ø 260 mm, étrier simple piston Freinage 1 disque Ø 260 mm, étrier 2 pistons
Seat height
710.00 mm 725.00 mm
Weight
260.00 kg 268.00 kg
Dry weight
251.00 kg 255.00 kg
New price
10 990 € 12 650 €

Engine

Displacement
1202 cc
Power
68.0 ch @ 6000 tr/min (50.0 kW)
Torque
96.1 Nm @ 3500 tr/min
Engine type
Bicylindre en V à 45°, 4 temps
Cooling
par air
Compression ratio
10 : 1
Bore × stroke
88,9 x 96,8 mm
Valves/cylinder
2
Camshafts
2 ACT
Fuel system
Injection

Chassis

Frame
Double berceau en acier
Gearbox
boîte à 5 rapports
Final drive
Courroie
Front suspension
Fourche téléscopique Ø 39 mm, déb : 105 mm
Rear suspension
2 amortisseurs latéraux, déb : 54 mm

Brakes

Front brakes
Freinage 1 disque Ø 300 mm, étrier 2 pistons
Rear brakes
Freinage 1 disque Ø 260 mm, étrier 2 pistons
Front tyre
130/90-16
Front tyre pressure
2.48 bar
Rear tyre
150/80-16
Rear tyre pressure
2.76 bar

Dimensions

Seat height
725.00 mm
Fuel capacity
17.00 L
Weight
268.00 kg
Dry weight
255.00 kg
New price
12 650 €

Overview

Is it still a true Harley when it sports a sixteen-inch front wheel and a handlebar that brings the wrists almost to shoulder level? The question arises legitimately with this XL Sportster 1200 Custom, a machine that has always cultivated its own style within the Sportster family. Launched in 2011 to succeed the 1200 C, it embraces a radical aesthetic: the shortened front end, with a fork inclined at 30 degrees and a 130-section front tire, gives it an aggressive, compact, almost customized stance. It’s a style statement, a nod to American customs, far from the neutrality of a Roadster.

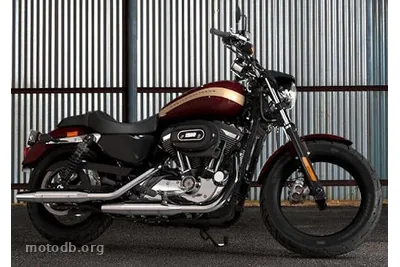

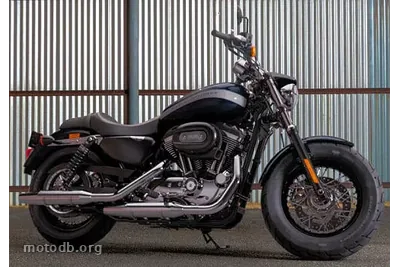

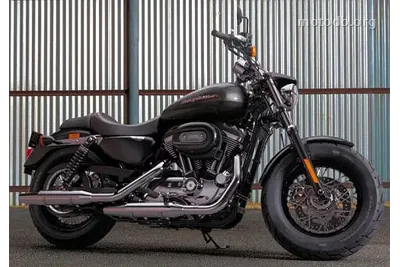

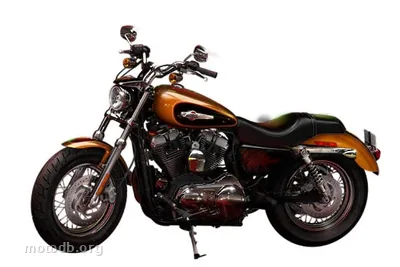

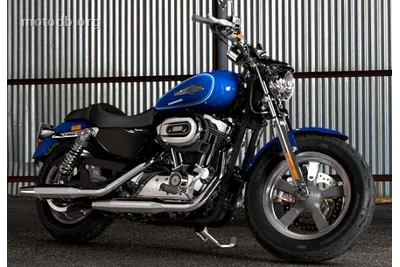

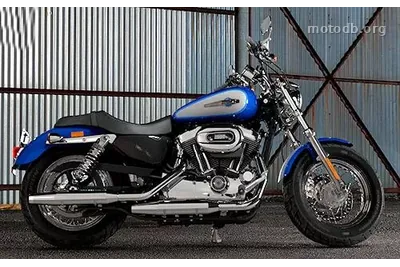

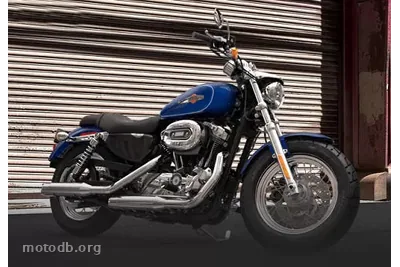

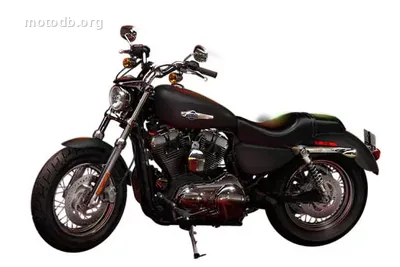

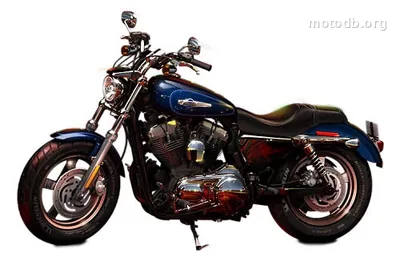

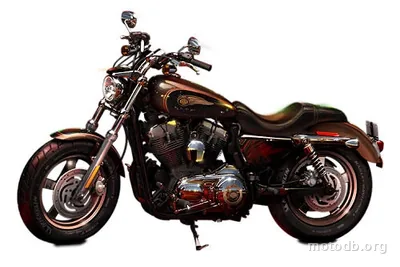

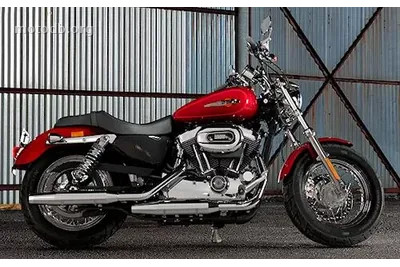

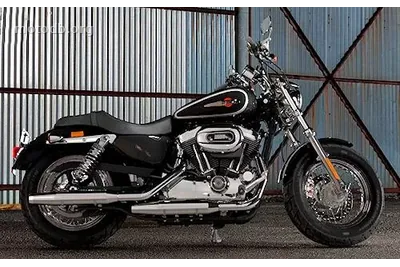

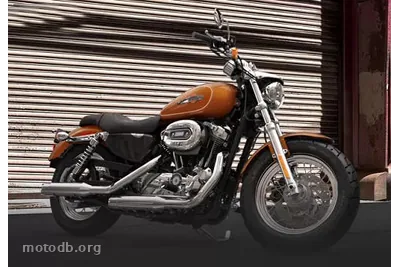

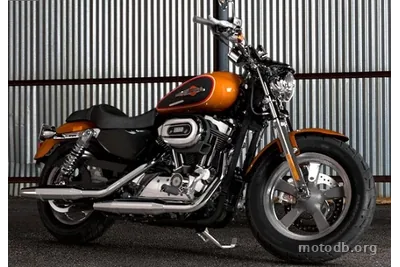

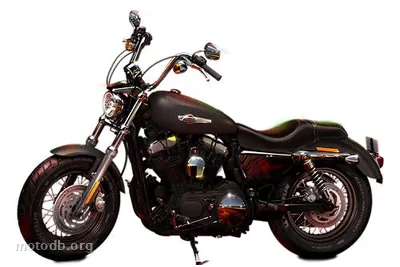

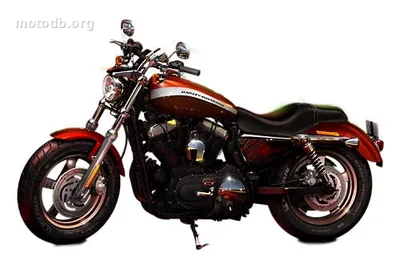

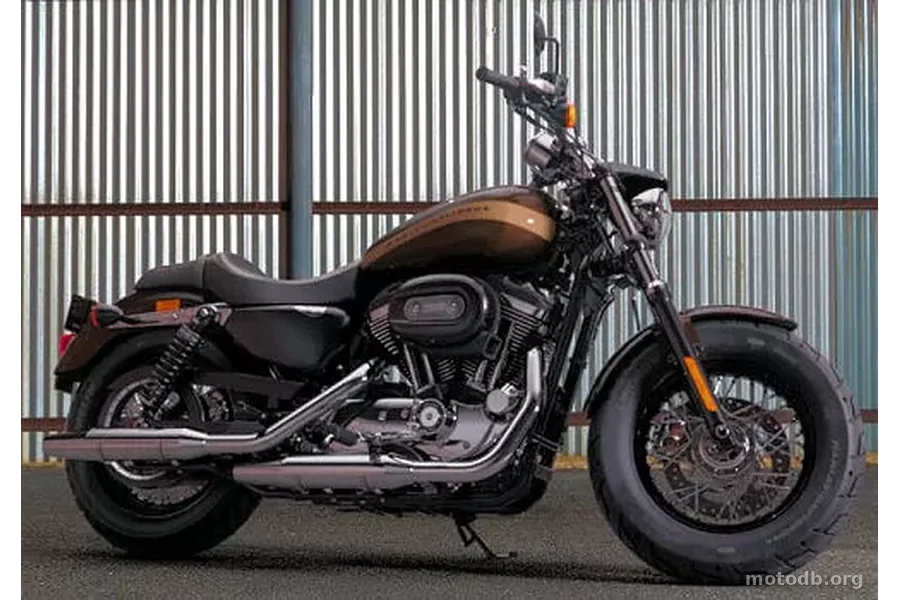

Harley-Davidson XL Sportster 1200 Custom

Under the 17-liter tank, the good old Evolution V-Twin of 1202 cc, air-cooled, continues to beat strongly. With 68 horsepower and 96 Nm of torque available from 3500 rpm, it doesn’t hold back. The power is modest compared to a modern Japanese twin cylinder, but that’s precisely where its charm lies. The sensation is raw, mechanical, with those characteristic vibrations that are part of the deal. The belt transmission is supple and silent, perfect for cruising. In the city or on a winding road, its low center of gravity and a seat height of 72.5 cm make it an accessible mount, even if its weight of 268 kg fully fueled is felt at low speed.

The major evolution for this generation, particularly on models from 2014 onwards like the Harley-Davidson XL Sportster 1200 Custom circa 2013, was the standard arrival of ABS and a much more convincing braking system, with a 300 mm front disc. The suspensions, revised in 2016, gain in settings and road holding, without transforming the beast into a cornering machine. It remains a Harley, made to ride straight and savor the atmosphere. The price of a new Harley-Davidson XL Sportster 1200 Custom was around 12650 euros, a price that positioned the machine as a stylish entry point into the world of Milwaukee big cylinders. Today, on the used market, versions like the Harley-Davidson XL Sportster 1200 Custom 2006 or the Harley-Davidson XL Sportster 1200 Custom circa 2015 represent an opportunity to access this iconic style for a more contained budget.

So, who is it for? Clearly for the rider who places attitude and sound above pure performance. It’s the urban explorer’s motorcycle who likes to be noticed, the novice attracted by the Harley myth without wanting to ride a mammoth. It forgives a lot, offers an authentic character, but it asks in return to accept its technical limitations and compromises. Faced with a Triumph Bonneville or a Yamaha Bolt, it doesn’t play in the same category of versatility or agility. It sells a dream, a posture, a fat rumble. And for many, that’s worth all the horsepower in the world.

Standard equipment

  • Assistance au freinage : ABS de série

Practical info

  • Véhicule accessible au permis A2 ou bridable à 47.5ch / 35 Kw
  • La moto est accessible aux permis : A, A2

Indicators & positioning

Weight-to-power ratio
0.25 ch/kg
🔄
Torque / weight
0.36 Nm/kg
🔧
Volumetric power
55.8 ch/L
In category Custom / cruiser · 601-2404cc displacement (3563 motorcycles compared)
Power 67 ch Top 56%
45 ch median 72 ch 124 ch
Weight 268 kg Lighter than 66%
223 kg median 297 kg 377 kg
P/W ratio 0.25 ch/kg Top 48%
0.17 median 0.25 0.40 ch/kg
