Key performance

70 ch
Power
🔧
1199 cc
Displacement
⚖️
273 kg
Weight
🏎️
175 km/h
Top speed
💺
667 mm
Seat height
17.0 L
Fuel capacity
💰
10 095 €
New price
Compare the Harley-Davidson XL 1200 SPORTSTER LOW with: Choose a motorcycle →

Technical specifications

Engine

Displacement
1199 cc
Power
70.0 ch @ 5000 tr/min (51.5 kW)
Torque
96.1 Nm @ 3200 tr/min
Engine type
Bicylindre en V à 45°, 4 temps
Cooling
par air
Compression ratio
9.7 : 1
Bore × stroke
88.8 x 96.8 mm
Valves/cylinder
2
Fuel system
Injection

Chassis

Frame
Double berceau tubulaire en acier
Gearbox
boîte à 5 rapports
Final drive
Courroie
Front suspension
Fourche téléhydraulique Ø 39 mm, déb : 117 mm
Rear suspension
2 amortisseurs latéraux, déb : 104 mm

Brakes

Front brakes
Freinage 1 disque Ø 292 mm, étrier 2 pistons
Rear brakes
Freinage 1 disque Ø 260 mm, étrier simple piston
Front tyre
100/90-19
Front tyre pressure
2.07 bar
Rear tyre
150/80-16
Rear tyre pressure
2.76 bar

Dimensions

Seat height
667.00 mm
Fuel capacity
17.00 L
Weight
273.00 kg
Dry weight
251.00 kg
New price
10 095 €

Overview

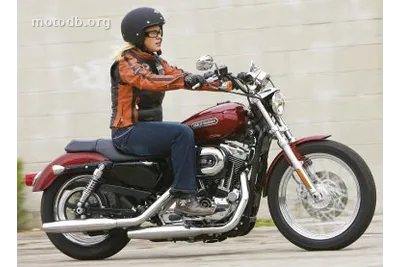

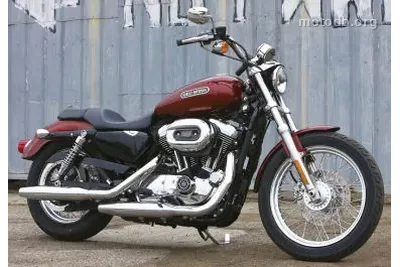

Who would have bet, in 2009, that Harley-Davidson would be able to create a machine so accessible within its granite foundation of the Sportster? The XL 1200 SPORTSTER LOW doesn’t revolutionize the formula, but it softens it with remarkable intelligence. At the time, the brand had already understood that it was necessary to seduce differently: not only the purists, but also those who find a Roadster too high, an attitude too extreme. With a seat at 667 millimeters, it literally lowers the barrier to entry. This is not a simple aesthetic modification; it's an invitation. You no longer need to be a giant to dominate this twin, and that changes everything.

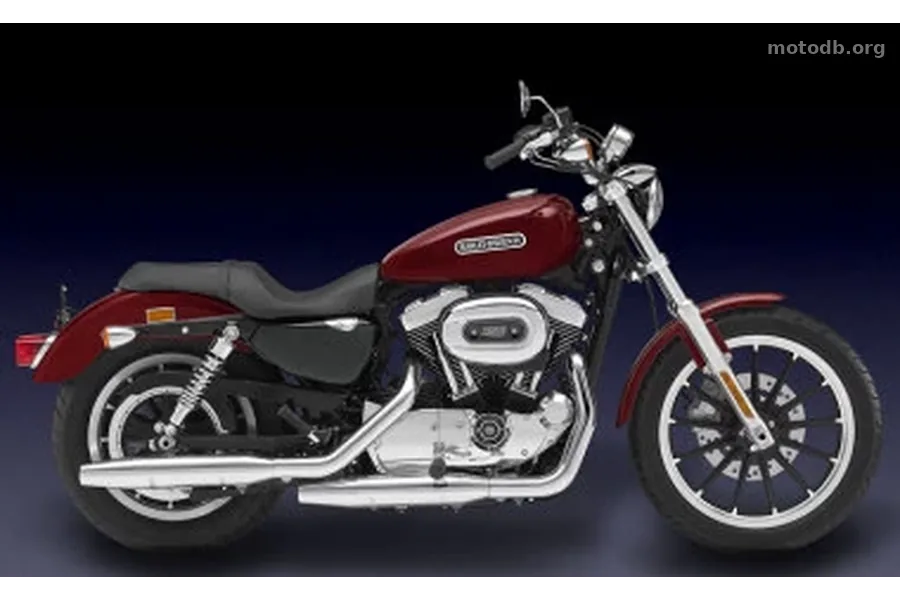

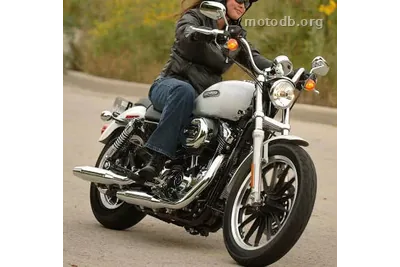

Harley-Davidson XL 1200 SPORTSTER LOW

The mechanics remain faithful to the DNA: a 45° V-twin of 1199 cc that growls with 70 horsepower at 5000 rpm and a torque of 96 Nm from 3200 rpm. Figures that, on paper, may seem modest compared to some Japanese competitors. But here, power is not a matter of numbers. It is a sensation. This engine, mounted on rubber mounts, transfers its vibrations into a mechanical symphony, not a nuisance. The belt drive and the five-speed gearbox are proven, reliable, and the clutch softened in this 2009 generation makes maneuvers less brutal. It's a Harley that has learned to be less rough, without losing its character.

On the road, the position is reworked for Europe. Pullback handlebar, central footpegs, Badlander seat: you are installed, almost enveloped, not perched. The steel double cradle frame and classic suspension (39 mm fork, lateral shock absorbers) ensure stable handling, without sporty pretensions. The braking, with a 292 mm disc at the front and a 260 mm disc at the rear, is sufficient for the riding style it offers, but does not rival the ABS systems of modern motorcycles. It weighs 273 kg fully fueled, a mass that is felt at low speed, but which dissolves as soon as the V-twin finds its rhythm.

Its 17-liter tank and a top speed of 175 km/h clearly position it for generous stages, quiet road trips, or even urban use for those who want a presence. At 10095 euros in 2009, it was placed in a premium niche, but justified by the image and unique experience. It doesn't chase the sporty rider; it targets the traveler who wants character without complication, the beginner attracted by the Harley aura but intimidated by the size, the urban dweller seeking a defined style.

Ultimately, the Sportster Low of 2009 is a tactical success. It will never deny its Milwaukee roots, but it opens the door a little wider. It proves that accessibility can coexist with identity, that you can lower a seat without lowering prestige. It's not the most radical Sportster, nor the most performant, but perhaps the one that most intelligently expanded the circle of enthusiasts.

Practical info

  • La moto est accessible aux permis : A

Indicators & positioning

Weight-to-power ratio
0.25 ch/kg
🔄
Torque / weight
0.35 Nm/kg
🔧
Volumetric power
57.5 ch/L
In category Custom / cruiser · 600-2398cc displacement (3563 motorcycles compared)
Power 69 ch Top 54%
45 ch median 72 ch 124 ch
Weight 273 kg Lighter than 63%
223 kg median 297 kg 377 kg
P/W ratio 0.25 ch/kg Top 47%
0.17 median 0.25 0.40 ch/kg
