Key performance

96 ch
Power
🔧
1803 cc
Displacement
⚖️
326 kg
Weight
🏎️
201 km/h
Top speed
💺
685 mm
Seat height
18.8 L
Fuel capacity
💰
27 000 €
New price
Compare the Harley-Davidson FXDFSE2 CVO Fat Bob with: Choose a motorcycle →

Technical specifications

Engine

Displacement
1803 cc
Power
96.0 ch (70.6 kW)
Torque
135.0 Nm @ 4000 tr/min
Engine type
V2, four-stroke
Cooling
Air
Compression ratio
9.2:1
Bore × stroke
101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/cylinder
2
Fuel system
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Electric

Chassis

Frame
Mild steel, tubular frame; rectangular section backbone;
Gearbox
6-speed
Final drive
Belt   (final drive)
Clutch
Hydraulically actuated, 9-plate wet, with high performance spring
Front suspension
49 mm with dual-rate springs
Rear suspension
Fully covered, coil-over shock
Front wheel travel
110 mm (4.3 inches)
Rear wheel travel
54 mm (2.1 inches)

Brakes

Front brakes
Double disc. 4-piston fixed
Rear brakes
Single disc. 2-piston floating
Front tyre
130/90-B16
Rear tyre
180/70-B16

Dimensions

Seat height
685.00 mm
Wheelbase
1615.00 mm
Ground clearance
110.00 mm
Length
2310.00 mm
Fuel capacity
18.80 L
Weight
326.10 kg
Dry weight
315.00 kg
New price
27 000 €

Overview

What, at its core, is a Harley-Davidson CVO? A stylistic exercise, an engineer’s whim, or simply the most eye-catching version of the catalog? Let's take this 2010 Fat Bob, boosted to 1803 cm3, and place it next to a Japanese muscle cruiser. The difference is immediately apparent, and it's not just because of the teardrop-shaped tank or the oversized tires. Here, you’re not buying a simple motorcycle; you’re subscribing to a folklore. The Twin Cam 110 CVO spits out 96 horsepower, a figure that would make a track rider on a liter-class sportbike smile, but its 135 Nm of torque, available from 4000 rpm, is a low-down punch that slams you against the seat. It’s this sensation, this visceral and sonorous surge, that enthusiasts seek. At 326 kg fully fueled, it’s not agile, but it imposes its own rhythm: heavy at idle, it smooths out once underway, carried by this enormous inertia.

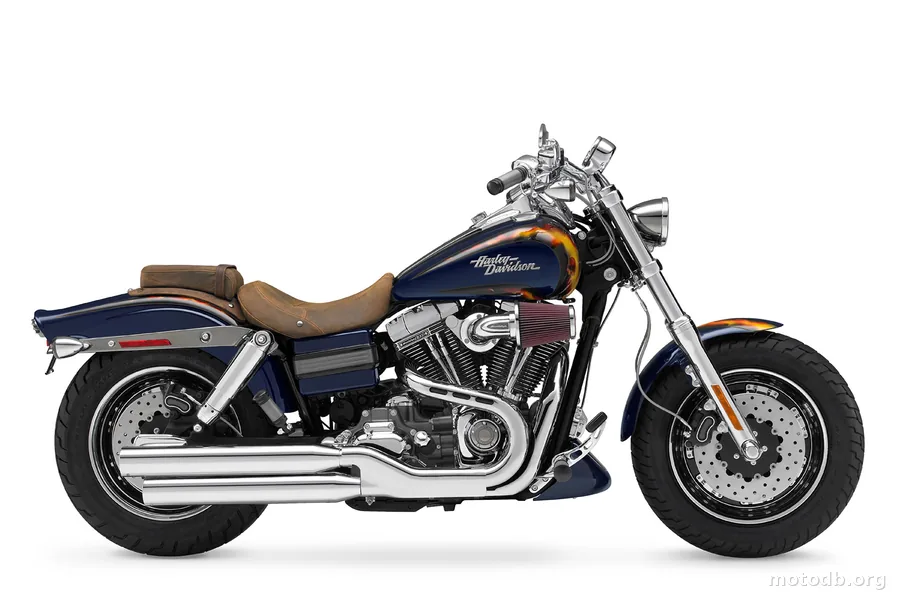

Harley-Davidson FXDFSE2 CVO Fat Bob

Speaking of weight, just over three quintals is the price to pay for this massive engine and ultra-robust look. The 110 mm ground clearance is a reminder that dreams of tight turns are out of the question, and the mild steel frame, although rigid, is not designed for surgical precision. It’s a machine that is piloted with anticipation and a touch of nonchalance, an art in itself. The 49 mm front suspension and the covered rear shock do their job correctly on smooth asphalt, but let's admit it, comfort is not the strong point. You’re here for the style, for the attitude, not to swallow hundreds of kilometers of highway without a blink. The braking, with its dual front discs and four-piston calipers, is honest without being transcendent, up to the displayed performance.

So, who is this €27,000 jewel for? Clearly not a novice, nor a touring rider seeking pure efficiency. The rider of the CVO Fat Bob is an aesthete, a collector, someone for whom the details count as much as the mechanics. He wants a unique piece, recognizable among a thousand, with the guarantee that this gargantuan engine will produce that characteristic sound, that hypnotic boum-boum. It’s a motorcycle for city centers where you show off, for gatherings of initiates where finishes are compared. Its top speed of 201 km/h is almost anecdotal; the important thing is the way you get there, with that impression of raw power and uncompromising style.

Faced with a Yamaha V-Max of the era, more nervous and technological, or a Honda VTX1800, more comfortable and versatile, the Harley makes a radical choice. It bets everything on emotion, on identity, even if it means sacrificing a few boxes on the technical specification sheet. Is it a good choice? For a passionate fan of the brand, yes, without hesitation. For a rational motorcyclist who looks at the power-to-weight ratio or fuel consumption, probably not. But the CVO has never sought rationality. It is the ultimate expression of a desire, the desire to own a Harley that stands out even more. A desirable object, simply.

Practical info

  • La moto est accessible aux permis : A

Indicators & positioning

Weight-to-power ratio
0.29 ch/kg
🔄
Torque / weight
0.41 Nm/kg
🔧
Volumetric power
52.5 ch/L
In category Custom / cruiser · 902-3606cc displacement (2768 motorcycles compared)
Power 95 ch Top 32%
49 ch median 80 ch 152 ch
Weight 326 kg Lighter than 35%
240 kg median 307 kg 380 kg
P/W ratio 0.29 ch/kg Top 33%
0.18 median 0.26 0.51 ch/kg
