Key performance
Technical specifications
Engine
- Displacement
- 1200 cc
- Power
- 77.0 ch @ 6100 tr/min (56.2 kW)
- Torque
- 106.0 Nm @ 4000 tr/min
- Engine type
- Twin, four-stroke
- Cooling
- Air
- Compression ratio
- 10.0:1
- Bore × stroke
- 97.6 x 80.0 mm (3.8 x 3.1 inches)
- Valves/cylinder
- 4
- Fuel system
- Injection
- Valve timing
- Single Overhead Cams (SOHC)
- Starter
- Electric
Chassis
- Frame
- Tubular steel cradle. Twin-sided, tubular steel swing arm.
- Gearbox
- 6-speed
- Final drive
- Chain (final drive)
- Clutch
- Wet, multi-plate assist clutch
- Front suspension
- KYB 41 mm forks with cartridge damping
- Rear suspension
- KYB monoshock with linkage and stepped preload adjuster
- Front wheel travel
- 90 mm (3.5 inches)
- Rear wheel travel
- 73 mm (2.9 inches)
Brakes
- Front brakes
- Double disc. ABS. Brembo 2-piston floating caliper
- Rear brakes
- Single disc. ABS. Nissin 2-piston floating caliper
- Front tyre
- 130/90-B16
- Rear tyre
- 150/80-R16
Dimensions
- Seat height
- 705.00 mm
- Wheelbase
- 1510.00 mm
- Width
- 770.00 mm
- Height
- 1040.00 mm
- Fuel capacity
- 12.11 L
- Dry weight
- 245.50 kg
Overview

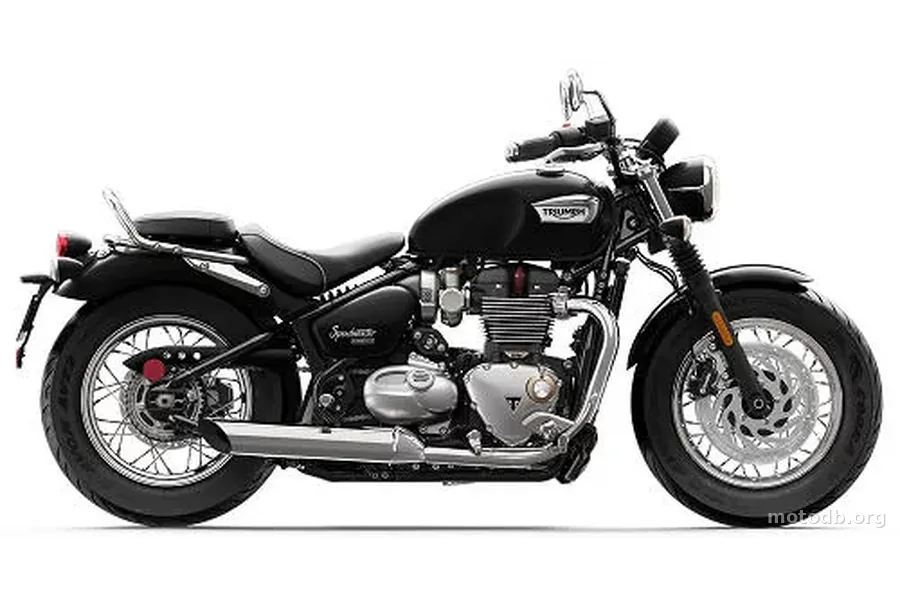

It’s 2004, and Triumph, freshly risen from the ashes, seeks to seduce America without betraying its British soul. The Speedmaster of that era is a bit of this bold response: take the Bonneville base, inject a dose of custom style, but keeping a temperament that cracks a little more than the America. The result? A machine that plays on two fronts with more conviction than one might have thought.

Under the 16.6-liter tank, the 790 cm³ parallel-twin, offset at 270 degrees, is the soul of the beast. It delivers only 62 horsepower, a modest power today, but it is its early torque of 60 Nm at 3500 rpm that makes all the difference. It vibrates, it growls, it gives a lively sensation that today's more aseptic engines have sometimes lost. This engine, coupled with a five-speed gearbox with shortened ratios, gives surprising agility to this custom that weighs 245 kg with full pockets.
But where does this Triumph Speedmaster really stand? It does a grand écart. On one side, the riding position, with its feet forward and its wide handlebar, screams leisurely cruising. On the other hand, the handling is frankly serious for a custom, and the front dual-disc braking inspires confidence. The Achilles' heel? The suspensions, especially at the rear, which tend to be dry and harshly remind you of the road's imperfections. The limited ground clearance also quickly tempers enthusiasm in corners. It's a sporty cruiser that invites you to play, but quickly brings you back in line.

Who rides this machine? For those seeking authentic custom style, without the bulk and lack of reactivity of large-displacement American machines. It’s an ideal gateway into the world of customs, easy to live with thanks to its low 720 mm seat, but which offers more sensations than a simple wheelchair. Today, finding a Triumph Speedmaster from this generation on the used market is a treasure hunt for lovers of modern classics. It also foreshadows the evolutions towards the 865, then the Speedmaster 900 and 1200 models currently available, which are more accomplished but also more aseptic.

In conclusion, this 2004 Speedmaster is not a perfect motorcycle. It is a compromise, sometimes rough, between relaxed aesthetics and a frustrated sporty temperament. But it is precisely this ambiguous character, this mechanical authenticity, that gives it its charm today. A test ride on a Triumph Speedmaster from this era will convince you that you can smile without needing 100 horsepower, simply with an engine that speaks and a style that doesn't go unnoticed. For a Triumph Speedmaster review, mine is clear: it's a historic machine, much more interesting and lively than its technical specifications suggest.
