Key performance

80 ch
Power
🔧
696 cc
Displacement
🏎️
200 km/h
Top speed
💺
770 mm
Seat height
15.0 L
Fuel capacity
💰
7 990 €
New price
Compare the Ducati Monster 696 with: Choose a motorcycle →

Technical specifications

Engine

Displacement
696 cc
Power
80.0 ch @ 9000 tr/min (57.6 kW)
Torque
50.6 Nm @ 7750 tr/min
Engine type
V2, four-stroke
Cooling
Air
Compression ratio
10.7:1
Bore × stroke
88.0 x 57.2 mm (3.5 x 2.3 inches)
Valves/cylinder
2
Camshafts
1 ACT
Fuel system
Injection. Siemens electronic fuel injection, 45mm throttle body
Valve timing
Desmodromic valve control
Starter
Electric

Chassis

Frame
Tubular steel trellis frame
Gearbox
6-speed
Final drive
Chain   (final drive)
Clutch
APTC wet multiplate with hydraulic control
Front suspension
Showa 43mm upside-down forks
Rear suspension
Progressive linkage with preload and rebound Sachs adjustable monoshock
Front wheel travel
120 mm (4.7 inches)
Rear wheel travel
148 mm (5.8 inches)

Brakes

Front brakes
Double disc
Rear brakes
Single disc
Front tyre
120/60-ZR17
Front tyre pressure
2.10 bar
Rear tyre
160/60-ZR17
Rear tyre pressure
2.20 bar

Dimensions

Seat height
770.00 mm
Wheelbase
1450.00 mm
Fuel capacity
15.00 L
Dry weight
161.00 kg
New price
7 990 €

Overview

Can you really tamper with an icon without disfiguring it? Ducati asked itself this question in 2008, when it was necessary to update the Monster, this roadster that has become a symbol. After fifteen years of various versions, from the 600 to the S4RS, the task was delicate. The result, this 2009 Ducati Monster 696, is a mixture of respect for DNA and necessary modernization. The low and stocky silhouette is immediately recognizable, but the stylized headlight gives it the air of a Brutale, while the under-seat exhausts recall the Street Triple. The vents on the tank divide opinions, but it is mainly under the skin that the changes are significant.

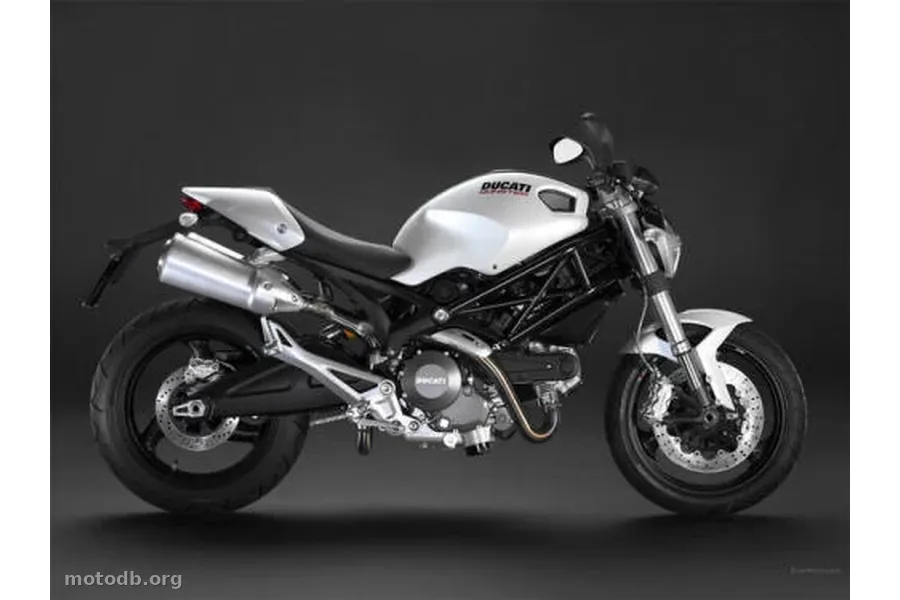

Ducati Monster 696

The trellis frame, a Ducati signature, remains but evolves. The tubes are thicker, and the rear hoop is now a molded aluminum piece, a hybrid inspired by the Desmosedici GP7. This gives a more rigid structure, prepared for increased performance. The mechanics follow this logic. The 696 cm3 V2 delivers 80 horsepower at 9000 rpm and a torque of 50.6 Nm at 7750 rpm, notable gains thanks to cylinder heads from the 1100 and improved thermal management. The APTC clutch facilitates handling, a real plus for daily riding. This engine, combined with a dry weight of 161 kg, offers a liveliness that pleases both novices and seasoned riders looking for an accessible but characterful motorcycle.

On the chassis, Ducati doesn't do things by halves. Showa suspension at the front and an adjustable Sachs monoshock at the rear ensure precise handling. The brakes, with 320 mm discs and radial four-piston calipers, are of a sporty level, offering braking power that inspires confidence. Tires of size 120/60 and 160/60 in ZR17 complete a very balanced package. The seat height of 770 mm remains accessible, even for shorter riders, which is an argument for those who consult technical specifications before making a decision. The 15-liter tank and a top speed announced at 200 km/h position this machine as a roadster capable of sporty days without being excessive.

In everyday use, this Monster 696 aims to be modern. The digital dashboard replaces the analog gauges, a change that may disorient purists but follows the trend. LEDs for the rear light and the redesigned front headlight add to its contemporary character. With a new price of 7990 euros at the time, it was positioned in an accessible range for a Ducati. Today, on the used market, a Ducati Monster 696 easily finds its place, especially for A2 licenses, thanks to its power within the limit and its intact character. Searches for a used Ducati Monster 696, on Le Bon Coin or elsewhere, testify to its lasting appeal.

Ducati Monster 696

Ultimately, this Ducati Monster 696 is a success. It modernizes the icon without losing its essence. It offers a rigid chassis, a lively engine, and ergonomics adapted to a wide audience, from beginner to experienced rider looking for a fun motorcycle. Its qualities, like its small stylistic flaws, are part of its history. For those looking for a roadster with a real pedigree, an engaging engine, and a design that doesn't go unnoticed, this Monster, in white, matte black, or customized with accessories, remains a relevant option. Its price, today on the used market, and its technical specifications, such as the tire pressure to monitor or the battery to maintain, are details that do not tarnish its status as a pleasant and capable machine.

Practical info

  • La moto est accessible aux permis : A

Indicators & positioning

🔧
Volumetric power
113.4 ch/L
In category Naked bike · 348-1392cc displacement (3836 motorcycles compared)
Power 79 ch Top 64%
43 ch median 96 ch 173 ch
