Key performance

76 ch
Power
🔧
1690 cc
Displacement
⚖️
304 kg
Weight
🏎️
160 km/h
Top speed
💺
680 mm
Seat height
17.8 L
Fuel capacity
💰
16 690 €
New price
Compare the Harley-Davidson 1690 DYNA STREET BOB CUSTOM FXDB with: Choose a motorcycle →

Technical specifications

Engine

Displacement
1690 cc
Power
76.0 ch @ 5250 tr/min (55.9 kW)
Torque
129.4 Nm @ 3000 tr/min
Engine type
Bicylindre en V à 45°, 4 temps
Cooling
par air
Compression ratio
9.2 : 1
Bore × stroke
98.4 x 111.1 mm
Valves/cylinder
2
Fuel system
Injection

Chassis

Frame
Double berceau tubulaire en acier
Gearbox
boîte à 6 rapports
Final drive
Courroie
Front suspension
Fourche téléhydraulique Ø 49 mm, déb : 127 mm
Rear suspension
2 amortisseurs latéraux, déb : 104 mm

Brakes

Front brakes
Freinage 1 disque Ø 300 mm, étrier 4 pistons
Rear brakes
Freinage 1 disque Ø 292 mm, étrier 4 pistons
Front tyre
100/90-19
Rear tyre
160/70-17

Dimensions

Seat height
680.00 mm
Fuel capacity
17.80 L
Weight
304.00 kg
Dry weight
291.00 kg
New price
16 690 €

Overview

Fifty-three. That is the number of units Harley-Davidson deigned to release onto French roads of this limited-edition Street Bob Custom FXDB. Fifty-three machines built for bobber enthusiasts who find the standard catalogue a little too tame, a little too safe. At 16,690 euros, Milwaukee doesn't joke around with pricing, but it doesn't joke around with positioning either: this motorcycle is aimed at those who know exactly what they want.

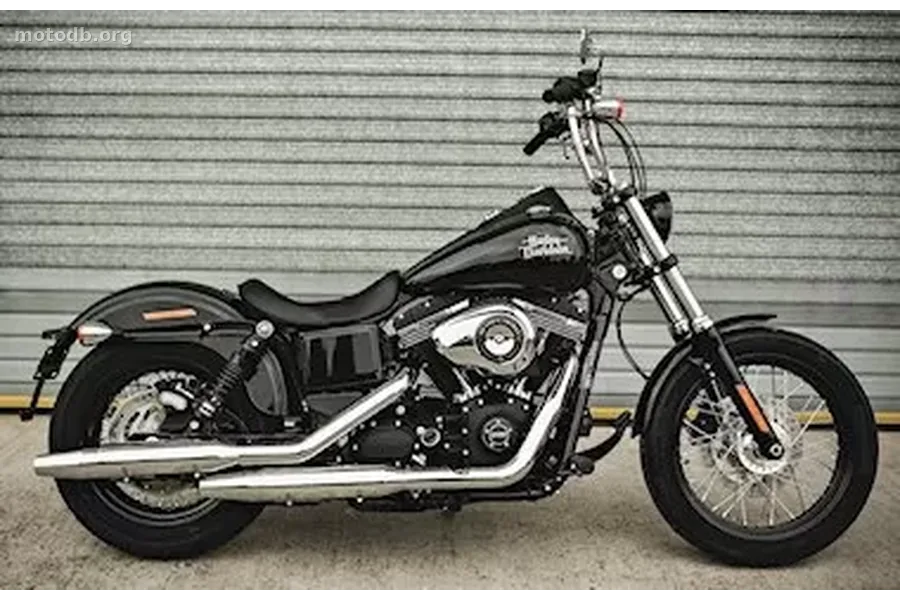

Harley-Davidson 1690 DYNA STREET BOB CUSTOM FXDB

Beneath the 17.8-liter tank beats the Twin Cam 103, a 45-degree V-twin displacing 1690 cc whose 111.1 mm stroke immediately reveals the builder's philosophy. The 76 horsepower at 5,250 rpm isn't the goal here — it's a secondary consequence. What matters is the torque: 129.4 Nm available from 3,000 rpm. The engine pushes, growls, communicates every road imperfection with a frankness that Japanese bikes of the same displacement don't practice. The six-speed belt-drive gearbox does the rest with a mechanical smoothness that contrasts intelligently with the sonorous character of the whole package.

Ergonomics are the real story of this Custom version. The forward controls pull the legs out front, the Chizeled handlebar imposes a relaxed, almost nonchalant posture — somewhere between a B-movie chopper and a backroads drag racer. The 680 mm seat height makes the machine accessible, which is fortunate given the 304 kg wet weight on the scales. The passenger wasn't invited to the party — no rear seat, no footpegs provided for them. It's a statement of intent as much as a stylistic choice.

Harley had the honesty to address the historical complaint about its Dyna line: the suspension. The 49 mm telescopic fork receives a single-cartridge Premium kit, while the two rear shock absorbers benefit from Premium Ride emulsion that noticeably improves comfort on degraded road surfaces. It's not a radical transformation — the 160 km/h top speed and overall proportions are a reminder that you're riding for the pleasure of the journey, not raw performance. Up against an Indian Scout Bobber or a Triumph Bonneville Bobber Black, the FXDB fully owns its American DNA without trying to compete on sporting terms.

The Daymaker LED headlight visually signals membership in the Dark Custom lineage — that family of dark, stripped-down machines that has represented Milwaukee's best answer to sanitized Japanese customs for several years now. This limited edition revolutionizes nothing; it refines, concentrates, and distills what the Street Bob already did well. For the urban rider seeking a machine with character and no daily compromise, it's exactly enough.

Standard equipment

  • Assistance au freinage : ABS de série

Practical info

  • La moto est accessible aux permis : A

Indicators & positioning

Weight-to-power ratio
0.25 ch/kg
🔄
Torque / weight
0.43 Nm/kg
🔧
Volumetric power
44.4 ch/L
In category Custom / cruiser · 845-3380cc displacement (3005 motorcycles compared)
Power 75 ch Top 51%
49 ch median 77 ch 148 ch
Weight 304 kg Lighter than 52%
235 kg median 305 kg 379 kg
P/W ratio 0.25 ch/kg Top 54%
0.18 median 0.25 0.49 ch/kg
